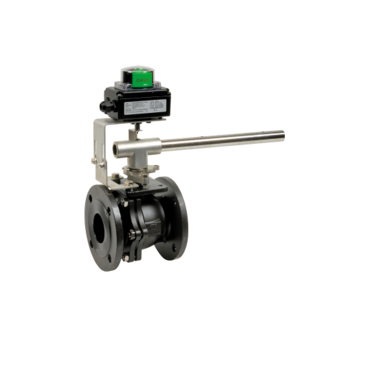

Ball valve 2-piece flanged & Limit Switch Box body: steel

Model: With limit switch Material body: Steel EN 1.0619
Connection: Flanged PN16/40 Material disc: St.St. EN 1.4408 check PDF
Temperature: Fluid -20°C / +200°C Material seat: PTFE filled with 15 % glass
Pressure: up to DN50 PN40 > PN16 see pdf Steam: 11 bars maximum
Limit switch
IP code: IP 67 Temperature: Ambiant -20°C / +80°C
Power: 250V AC-5A 2 SPDT Silver Plated Model: SF 01200
Body material: Aluminium Mounting bridge: Stainless steel
Dome: Polycarbonate Coating: Polyester paint
Options
SF 73200    2 inductive detectors 3 threads PNP 10-30V DC P+F NBB2 V3 E2
SF 75200    2 inductive detectors 2 threads NO/NC 5-36V DC IFM IS 5026
SF 83200    2 inductive detectors 2 threads NO 5-60V DC P+F NBB3 V3 Z4
Indicator for 3 way L valves   Indicator for 3 way T valves
SF3D 01200   IP65 ATEX Ex 2 SPDT silver plated mechanical switches 250V AC - 5A
SF3G 6H200   IP65 ATEX Ex 2 inductive detectors 3 threads PNP 10-30V DC P+F NBB2 V3 E2
SIB 70221-2   IP67 ATEX Ex 2 inductive detectors NAMUR P+F NJ2 V3N / N - NO
Use: Shipbuilding, Chemical industries, petrochemical industries, hydraulic installation, compressed air, heating and water distribution

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU: MXT-762LS010000
Body material Steel
Disc / Ball / Wedge StainlessSteel-1.4408-316
Seat PTFE filled with 15% glass
Grouped product items
SKU Product Name DN Length € / st Qty
MXT-762LS010015 Ball valve 2-piece & limit switch steel flanged-PN40 - DN15 15 115
€526.39
- +
MXT-762LS010020 Ball valve 2-piece & limit switch steel flanged-PN40 - DN20 20 120
€529.20
- +
MXT-762LS010025 Ball valve 2-piece & limit switch steel flanged-PN40 - DN25 25 125
€632.37
- +
MXT-762LS010032 Ball valve 2-piece & limit switch steel flanged-PN40 - DN32 32 130
€656.62
- +
MXT-762LS010040 Ball valve 2-piece & limit switch steel flanged-PN40 - DN40 40 140
€752.58
- +
MXT-762LS010050 Ball valve 2-piece & limit switch steel flanged-PN40 - DN50 50 150
€845.96
- +
MXT-762LS010060 Ball valve 2-piece & limit switch steel flanged-PN16 - DN65 65 170
€1,165.80
- +
MXT-762LS010080 Ball valve 2-piece & limit switch steel flanged-PN16 - DN80 80 180
€1,317.98
- +
MXT-762LS010100 Ball valve 2-piece & limit switch steel flanged-PN16 - DN100 100 190
€1,493.02
- +
MXT-762LS010125 Ball valve 2-piece & limit switch steel flanged-PN16 - DN125 125 325
€2,298.23
- +
MXT-762LS010150 Ball valve 2-piece & limit switch steel flanged-PN16 - DN150 150 350
€2,766.95
- +
